Characteristics
- Light Weight
- Easy Installation
- Low resistance
- Full Leak Tested
- High air flow

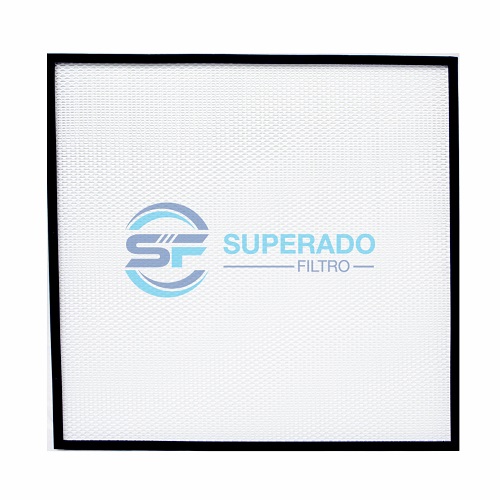

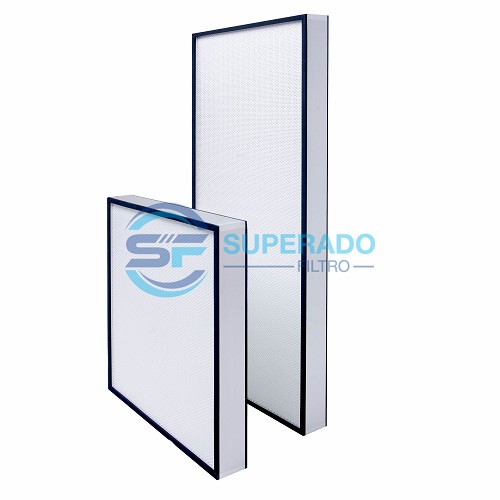

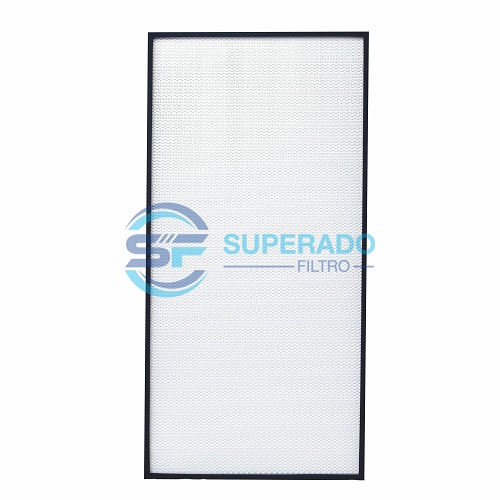

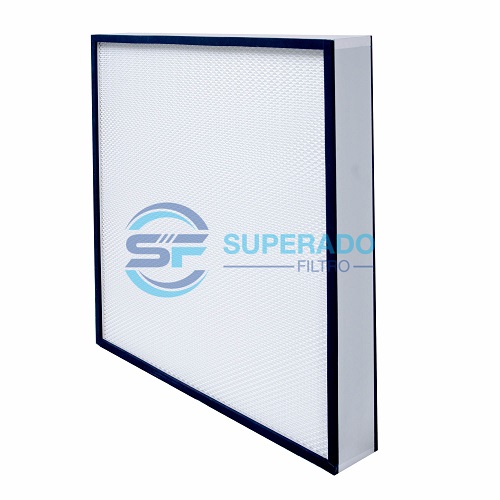

UltraCel II – HEPA Filter
UltraCel II – HEPA Filter
Model : UltraCel II
Type : Minipleat HEPA Filter
Frame : Anodized Aluminium
Media : Ultra Glass Fibre
Separator : Hot-Melt
Frame Thickness : 69mm
Arrestance : H11, H12, H13 & H14 (@ 0.3 micron)
Specifications
| Dimension (mm) H x W x D |
Rated Initial Resistance | |||||||
|---|---|---|---|---|---|---|---|---|
| H13 (99.99% @0.3μm) |
H14 (99.999% @0.3μm) |
U15 (99.9995% @0.12μm) |
U16 (99.99995% @0.12μm) |
|||||
| (In. WG) | (Pa) | (In. WG) | (Pa) | (In. WG) | (Pa) | (In. WG) | (Pa) | |
| 610 x 610 x 69 | 0.44 | 110 | 0.50 | 125 | 0.58 | 145 | 0.70 | 175 |
| 610 x 915 x 69 | ||||||||
| 610 x 1220 x 69 | ||||||||
| 915 x 1220 x 69 | ||||||||
| 1220 x 1220 x 69 | ||||||||
Application
For high level cleanliness environment and air conditioning devices of all kinds:
- Final filtration for surgery operation room
- Final filtration for food and ingredient processing
- Final filtration for painting and drying plants
- Final filtration for micro-electronic processing factory
- Medical and air conditioning devices
